487 - STRAW SPREADER VALVE AND HOSES ( - 715400)( СОЛОМЫ КЛАПАН РАСПРЕДЕЛИТЕЛЬ И ШЛАНГИ )

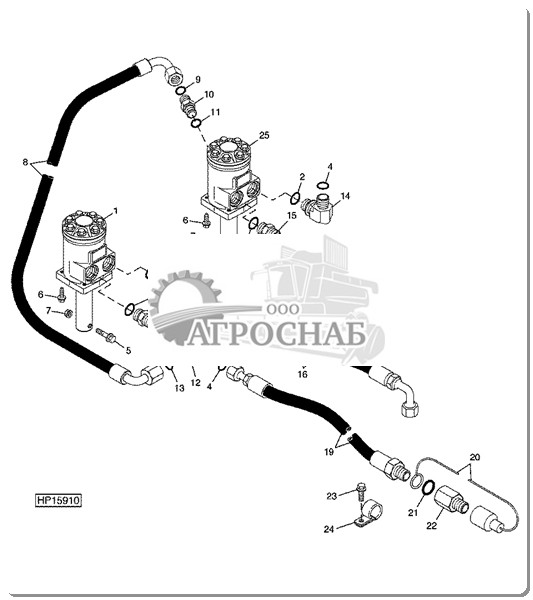

STRAW SPREADER VALVE AND HOSES (715401 - )(СОЛОМЫ КЛАПАН РАСПРЕДЕЛИТЕЛЬ И ШЛАНГИ )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | M121T | Washer | 1 | X | X | ||
| 2 | H133981 | Seal | 1 | X | X | ||
| 3 | H133851 | Box | 1 | X | X | ||
| 4 | H133852 | Box | 1 | X | X | ||
| 5 | 21M7250 | Screw | 4 | X | X | M4 X 12 | |
| 6 | 21H1348 | Screw | 2 | X | X | 0.138" X 1-1/8" | |
| 7 | 12H314 | Lock Washer | 2 | X | X | 0.138" | |
| 8 | AH139987 | Printed Circuit | 1 | X | X | ||
| 9 | 14H1026 | Nut | 2 | X | X | 0.138" | |
| 10 | H144032 | Screw | 4 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | AH128865 | Electric Motor | 1 | X | X | ||
| 12 | 14M7100 | Nut | 4 | X | X | M4 | |
| 13 | 14M7397 | Lock Nut | 1 | X | X | M6 | |
| 14 | H114020 | Half Clamp | 2 | X | X | ||
| 15 | 03M7290 | Bolt | 1 | X | X | M6 X 30 | |
| 16 | 19H2925 | Screw | 2 | X | X | 0.190" X 1/2" | |
| 17 | 24M7027 | Washer | AR | X | X | 5.300 X 10 X 1 mm | |
| 18 | H146950 | Washer | 1 | X | X | ||
| 19 | AH141813 | Reel Kit | 1 | X | X | ||
| 20 | 19M7801 | Screw | 2 | X | X | M8 X 60 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | 19M7298 | Cap Screw | 1 | X | X | M8 X 35 | |
| 22 | AH140902 | Check Valve | 1 | X | X | ||
| AH136248 | Seal Kit | 1 | X | X | |||
| AH140903 | Stem Kit | 1 | X | X | |||
| 23 | AW25301 | Hydr. Quick Coupler Socket | 1 | X | X | ||
| 24 | 14M7298 | Flange Nut | 4 | X | X | M8 | |
| 25 | AW25301 | Hydr. Quick Coupler Socket | 1 | X | X | ||
| 26 | T77932 | O-Ring | 5 | X | X | ||
| 27 | AH167728 | Hydraulic Hose | 1 | X | X | LGTH = 1770 mm | |
| 28 | T77857 | O-Ring | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 29 | 38H1174 | Adapter Fitting | 1 | X | X | ||
| 30 | R26906 | O-Ring | 4 | X | X | ||
| 31 | 38H1162 | Adapter Fitting | 2 | X | X | ||
| 32 | AH212676 | Hydraulic Hose | 1 | X | X | LGTH = 800 mm | |
| 33 | 38H1018 | Tee Fitting | 1 | X | X | ||
| 34 | R26375 | O-Ring | 1 | X | X | ||
| 35 | 24M7024 | Washer | 1 | X | X | 9 X 28 X 3 mm | |
| 36 | 38H1164 | Adapter Fitting | 2 | X | X | ||
| 37 | T76938 | O-Ring | AR | X | X | ||
| 38 | R29936 | O-Ring | AR | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 39 | AH153773 | Hydraulic Hose | 1 | X | X | LGTH = 1500 mm | |
| 40 | AR94522 | Hydr. Quick Coupler Plug | 1 | X | X | ||
| 41 | AH152871 | Hydraulic Hose | 1 | X | X | LGTH = 825 mm | |
| 42 | 19M7866 | Screw | 2 | X | X | M8 X 20 SUB FOR (2) 19M7868 | |
| 43 | 38H1052 | Elbow Fitting | 1 | X | X | ||
| 44 | AH165792 | Hydraulic Hose | 1 | X | X | LGTH = 1160 mm | |
| 45 | H137603 | Shield | 1 | X | X | ||
| 46 | 19M7865 | Screw | 2 | X | X | M8 X 16 | |
| 47 | 14M7396 | Lock Nut | 2 | X | X | M8 | |
| 48 | AH226238 | Hydraulic Pump | 1 | X | X | SUB FOR AH128573 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 49 | H137602 | Arm | 1 | X | X | ||
| 50 | 19M7789 | Screw | 2 | X | X | M12 X 30 | |
| 51 | H204775 | Hub | 1 | X | X | ||
| 52 | 14M7300 | Flange Nut | 1 | X | X | M20 | |
| 53 | 24M7242 | Washer | 1 | X | X | 21.400 X 42 X 5 mm | |
| 54 | 19M7866 | Screw | 2 | X | X | M8 X 20 SUB FOR (2) 19M7868 | |
| 55 | 24M7024 | Washer | 4 | X | X | 9 X 28 X 3 mm | |
| 56 | H137602 | Arm | 1 | X | X | ||
| 57 | E59406 | Flange Nut | 1 | X | X | ||
| 58 | 03M7186 | Bolt | 2 | X | X | M8 X 30 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 59 | 14M7396 | Lock Nut | 2 | X | X | M8 | |
| 60 | H78340 | Isolator | 1 | X | X |

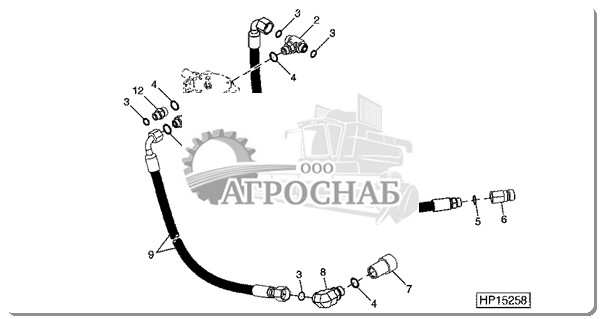

Wide Spread Tailboard Valve Assembly Hoses(Широкое Распространение Клапана Откидного Борта Шланги)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH221380 | Hydraulic Hose | 1 | X | X | LGTH = 1700 mm, SUB FO R AH214553 OR AH220877 | |
| 2 | 38H1018 | Tee Fitting | 1 | X | X | ||
| 3 | T77932 | O-Ring | AR | X | X | ||
| 4 | R26906 | O-Ring | AR | X | X | ||
| 5 | R26375 | O-Ring | 1 | X | X | ||
| 6 | AR94522 | Hydr. Quick Coupler Plug | 1 | X | X | ||
| 7 | AW25301 | Hydr. Quick Coupler Socket | 1 | X | X | ||
| 8 | 38H1006 | Elbow Fitting | 1 | X | X | ||
| 9 | AH221381 | Hydraulic Hose | 1 | X | X | LGTH = 1925 mm, SUB FO R AH214943 OR AH220876 | |
| 10 | 38H1174 | Adapter Fitting | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | T77857 | O-Ring | 1 | X | X | ||
| 12 | 38H1162 | Adapter Fitting | 1 | X | X |

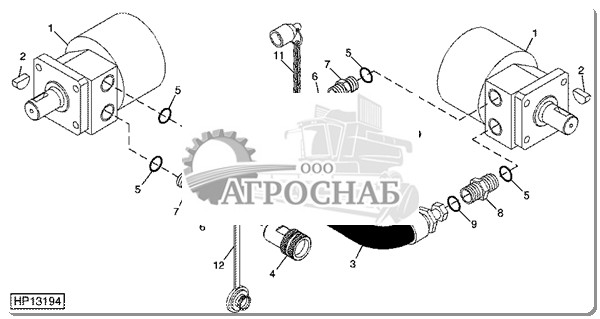

Wide Spread Tailboard Hydraulic Motors And Hoses ( - 715410)(Широкое Распространение Откидного Борта Гидравлические Моторы И Шланги )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH212161 | Hydraulic Motor | 2 | X | X | ||
| AH163801 | Seal Kit | 2 | X | X | |||
| 2 | H137328 | Lock Nut | 2 | X | X | ||
| 3 | 19M7801 | Screw | 2 | X | X | M8 X 60 | |
| 4 | 19M7784 | Screw | 8 | X | X | M10 X 20 | |
| 5 | R26906 | O-Ring | AR | X | X | ||
| 6 | 38H1162 | Adapter Fitting | 2 | X | X | ||
| 7 | T77932 | O-Ring | AR | X | X | ||
| 8 | AH214555 | Hydraulic Hose | 1 | X | X | LGTH = 1020 mm | |
| 9 | AH214554 | Hydraulic Hose | 1 | X | X | LGTH = 1060 mm | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | AW25301 | Hydr. Quick Coupler Socket | 1 | X | X | ||
| 11 | H125403 | Plug | 1 | X | X | ||
| 12 | T31269 | Adapter Fitting | 1 | X | X | ||
| 13 | A15898 | Cap | 1 | X | X | ||
| 14 | AR94522 | Hydr. Quick Coupler Plug | 1 | X | X | ||
| 15 | R26375 | O-Ring | AR | X | X |

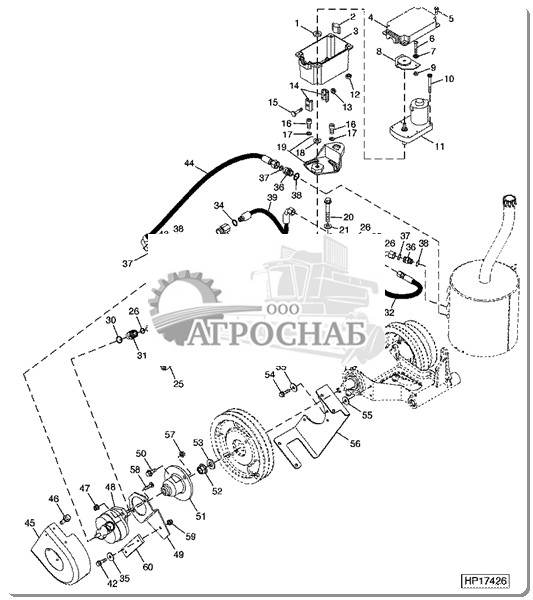

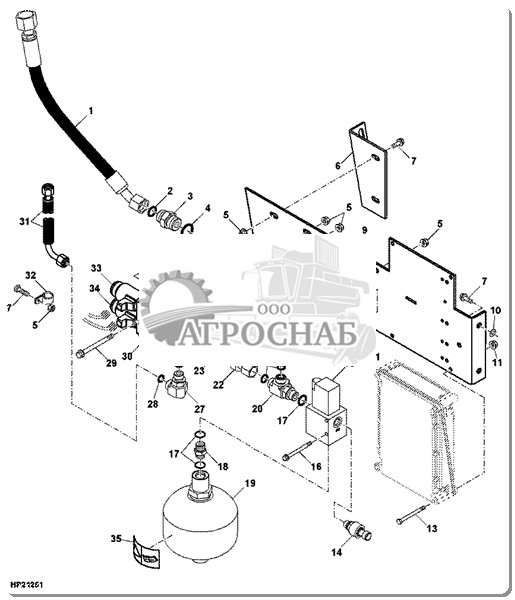

Touchset Header Float Valve and Support(Touchset Заголовок Поплавковый клапан и поддержку)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH153756 | Hydraulic Hose | 1 | X | X | (A) LGTH = 500 mm | |
| AH215241 | Hydraulic Hose | 1 | X | X | (B) LGTH = 470 mm | ||
| 2 | T77932 | O-Ring | 1 | X | X | ||
| 3 | 38H1329 | Adapter Fitting | 1 | X | X | ||
| 4 | U12547 | O-Ring | 1 | X | X | ||
| 5 | 14M7298 | Flange Nut | AR | X | X | M8 | |
| 6 | H174893 | Plate | 1 | X | X | ||
| 7 | 19M7866 | Screw | AR | X | X | M8 X 20 | |
| 8 | AH78125 | Clip | 1 | X | X | ||
| 9 | AH168715 | Bracket | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | H131531 | Push Nut | 2 | X | X | ||
| 11 | 14M7303 | Flange Nut | 4 | X | X | M6 | |
| 12 | AH89486 | Clip | 1 | X | X | ||
| 13 | 19M8786 | Screw | 4 | X | X | M6 X 70 | |
| 14 | RE204264 | Trans Oil Pressure Sensor | 1 | X | X | ||
| 15 | AZ51268 | Valve | 1 | X | X | ||
| 16 | 19M8040 | Screw | 2 | X | X | M6 X 60 | |
| 17 | R26375 | O-Ring | AR | X | X | ||
| 18 | R63922 | Fitting | 1 | X | X | ||
| 19 | AZ61684 | Hydraulic Accumulator | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 20 | 38H1024 | Tee Fitting | 1 | X | X | ||
| 21 | T77857 | O-Ring | 2 | X | X | ||
| 22 | 38H1459 | Fitting | 1 | X | X | ||
| 23 | R26906 | O-Ring | 1 | X | X | ||
| 24 | R26448 | O-Ring | 1 | X | X | ||
| 25 | AH125760 | Hyd. Quick-Connect Coupler | 1 | X | X | ||
| 26 | R77175 | Cover | 1 | X | X | ||
| 27 | 38H1005 | Elbow Fitting | 1 | X | X | ||
| 28 | T77857 | O-Ring | 1 | X | X | ||
| 29 | 19M7803 | Screw | 2 | X | X | M8 X 70 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 30 | AH201227 | Hydraulic Pressure Valve | 1 | X | X | INCLUDES AZ52234, AZ52235 AND AH160003 | |
| 31 | AH168661 | Hydraulic Hose | 1 | X | X | LGTH = 3325 mm | |
| 32 | R50454 | Clamp | 1 | X | X | ||
| 33 | AZ52234 | Electrical Coil | 1 | X | X | ||
| 34 | AZ52235 | Electrical Coil | 1 | X | X | ||
| 35 | L113583 | Label | 1 | X | X | ||
| 36 | AH160003 | Manifold | 1 | X | X | ||
| .. | AZ52236 | Gasket Kit | 1 | X | X |
Wide Spread Tailboard Hydraulic Motors And Hoses (715411 - )(Широкое Распространение Откидного Борта Гидравлические Моторы И Шланги )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH212161 | Hydraulic Motor | 1 | X | X | ||
| AH163801 | Seal Kit | 1 | X | X | |||
| 2 | R26906 | O-Ring | 5 | X | X | ||
| 3 | 38H1162 | Adapter Fitting | 2 | X | X | ||
| 4 | T77932 | O-Ring | 4 | X | X | ||
| 5 | 19M7801 | Screw | 2 | X | X | M8 X 60 | |
| 6 | 19M7784 | Screw | 8 | X | X | M10 X 20 | |
| 7 | H137328 | Lock Nut | 2 | X | X | ||
| 8 | AH221224 | Hydraulic Hose | 1 | X | X | LGTH = 1150 mm | |
| 9 | T77814 | O-Ring | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | 38H1159 | Adapter Fitting | 1 | X | X | ||
| 11 | R28782 | O-Ring | 1 | X | X | ||
| 12 | 38H1546 | Tee Fitting | 1 | X | X | ||
| 13 | T77613 | O-Ring | 1 | X | X | ||
| 14 | 38H1006 | Elbow Fitting | 1 | X | X | ||
| 15 | T31269 | Adapter Fitting | 1 | X | X | ||
| 16 | AH214555 | Hydraulic Hose | 1 | X | X | LGTH = 1020 mm | |
| 17 | AW25301 | Hydr. Quick Coupler Socket | 1 | X | X | ||
| 18 | H125403 | Plug | 1 | X | X | ||
| 19 | AH221223 | Hydraulic Hose | 1 | X | X | LGTH = 1060 mm | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 20 | A15898 | Cap | 1 | X | X | ||
| 21 | R26375 | O-Ring | 1 | X | X | ||
| 22 | AR94522 | Hydr. Quick Coupler Plug | 1 | X | X | ||
| 23 | 19M7865 | Screw | 1 | X | X | M8 X 16 | |
| 24 | AH78237 | Clamp | 1 | X | X | ||
| 25 | AH221227 | Hydraulic Motor | 1 | X | X | ||
| AH163801 | Seal Kit | 1 | X | X |

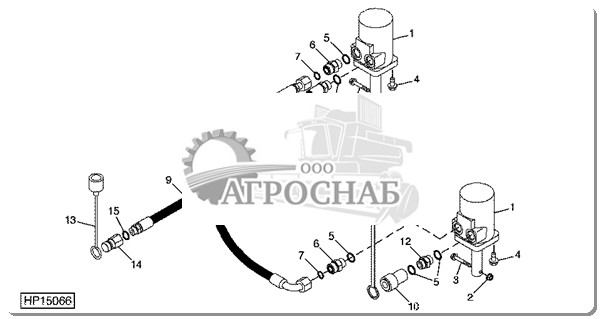

FEEDER HOUSE GEARCASE OIL COOLER AND HOSES(ПИТАТЕЛЯ РЕДУКТОР МАСЛЯНЫЙ РАДИАТОР И ШЛАНГИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 38H1005 | Elbow Fitting | 1 | X | X | ||
| 2 | 19M7789 | Screw | 1 | X | X | M12 X 30 | |
| 3 | R26375 | O-Ring | 4 | X | X | ||
| 4 | 19M7866 | Screw | 3 | X | X | M8 X 20 | |
| 5 | R111156 | Clip | 2 | X | X | ||
| 6 | AH150687 | Oil Cooler | 1 | X | X | ||
| 7 | H209581 | Angle | 1 | X | X | ||
| 8 | 14M7298 | Flange Nut | 5 | X | X | M8 | |
| 9 | 19M7800 | Screw | 2 | X | X | M8 X 50 | |
| 10 | AH96317 | Clip | 2 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | AH211604 | Hydraulic Hose | 1 | X | X | LGTH = 1100 mm | |
| 12 | AH202606 | Hydraulic Hose | 1 | X | X | LGTH = 2000 mm | |
| 13 | T77857 | O-Ring | 3 | X | X | ||
| 14 | H163604 | Bracket | 1 | X | X | ||
| 15 | AH97280 | Clip | 1 | X | X | ||
| 16 | 38H1171 | Adapter Fitting | 1 | X | X | ||
| 17 | T77613 | O-Ring | 1 | X | X | ||
| 18 | 38H1161 | Adapter Fitting | 1 | X | X | ||
| 19 | 14M7299 | Flange Nut | 1 | X | X | M12 | |
| 20 | 38H1046 | Elbow Fitting | 1 | X | X |

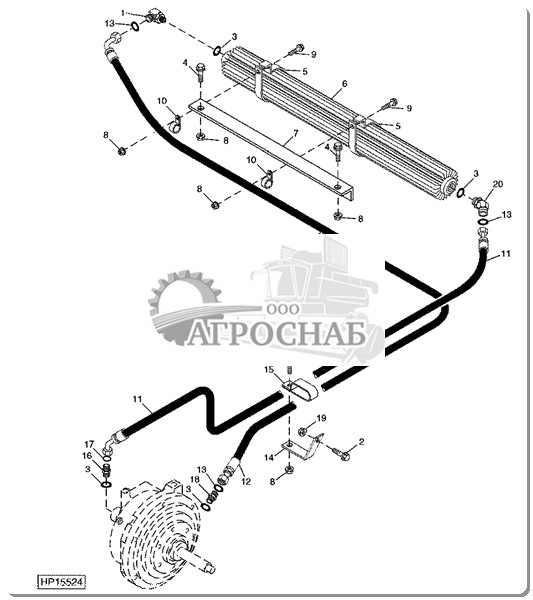

Straw Spreader Motor, Hose and Fittings(Разбрасыватель соломы мотор шланг и фитинги)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH148944 | Hydraulic Motor | 2 | X | X | ||
| AXE17375 | Seal Kit | 1 | X | X | SUB FOR AH163801 | ||
| 2 | 26H85 | Shaft Key | 2 | X | X | 1/4" X 1" | |
| 3 | AH232713 | Hydraulic Hose | 1 | X | X | LGTH = 685 mm, SUB FOR AH230907 | |
| 4 | AH75167 | Hydr. Quick Coupler Socket | 1 | X | X | ||
| 5 | R26906 | O-Ring | 4 | X | X | ||
| 6 | R26375 | O-Ring | 2 | X | X | ||
| 7 | T62843 | Adapter Fitting | 2 | X | X | ||
| 8 | 38H1174 | Adapter Fitting | 2 | X | X | ||
| 9 | T77857 | O-Ring | 2 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | AR94522 | Hydr. Quick Coupler Plug | 1 | X | X | ||
| 11 | A15898 | Cap | 1 | X | X | ||
| 12 | H125403 | Plug | 1 | X | X | ||
| 13 | AH90990 | Clip | 1 | X | X | ||
| 14 | 19M7866 | Screw | 1 | X | X | M8 X 20 | |
| 15 | 14M7298 | Flange Nut | 1 | X | X | M8 |
